Detailed Product Description
3. Production Description:
1. Grade:
Gr1, Gr2 , Gr3,Gr4,Gr5(Ti-6Al-4V), Gr7,Gr9 etc
2. Standard:
ASTM B348
1) Size: Diameter: 7~300mm

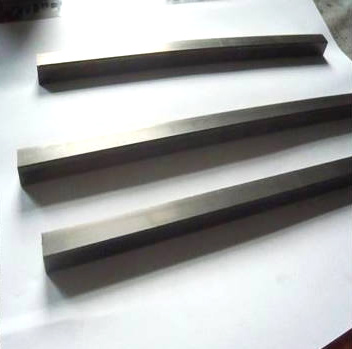

2) Shape: Round or square or hexagonal
3) Length: 100~6000mm
4) Weight: According to the sizes.
5) Technique: Forged, Rolled.
6) Surface: Polished bright surface
7) Material: Pure titanium and alloy titanium
8) Certification Report: CE, SGS, REACH
4. Features:
Low density, High specific strength, Excellent corrosive resistance, Rustless, Good thermal
stability, Good thermal conductivity, Biological features, Plasticity, etc.
5. Applications:
Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing and others.
6. Customer service :
Our quality of service reliable credit and sincere hope that new and old customers at home and abroad and development together.
Mechanical Property
Grade | Tensile Strength , min | Yield Strength,0.2% Offset | Elongation,min,% | Reduction of Area , min , % |
Ksi | Mpa | Ksi | Mpa | | |
Grade 1 | 35 | 240 | 20 | 138 | 24 | 30 |
Grade 2 | 50 | 345 | 40 | 275 | 20 | 30 |
Grade 3 | 65 | 450 | 55 | 380 | 18 | 30 |
Grade 4 | 80 | 550 | 70 | 483 | 15 | 25 |
Grade 5 | 130 | 895 | 120 | 828 | 10 | 25 |
Grade 7 | 50 | 345 | 40 | 275 | 20 | 30 |
Grade 9 | 90 | 620 | 70 | 483 | 15 | 25 |
Grade 12 | 70 | 483 | 50 | 345 | 18 | 25 |
| | | | | | | |
